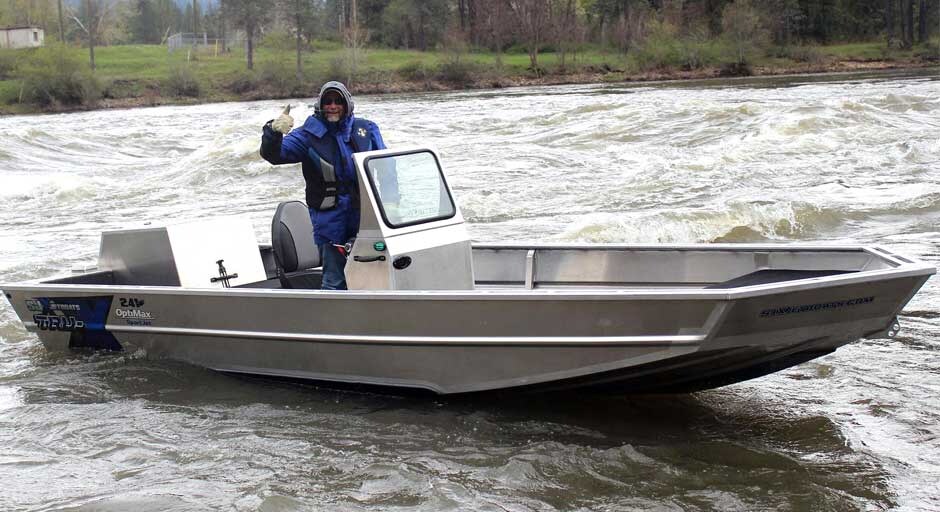

Tru-X 241 Jet Boat Specifications

The Tru-X 241  Jet Boat is our entry level jet boat. We've removed some of our less requested standard features to accommodate customers budgets, but left nothing off when to comes to quality, capability, and performance. which SJX Jet Boats has come to be known for. The best shallow river jet boat on the water!

Aluminum Hull

5052-H32 Alloy Temper used for most construction except where specified. All floors and deck hatch lids coated with bed-liner material and with sound deadening insulation. Zero Aluminum to Aluminum contact between boat subfloor and flooring! Triple bulkhead cross floor construction, 28 cross floor braces @ 16-inch centers, .125 (1/8 inch) thick channels 6063-T6 Alloy Temper, bulkhead plates .166 (3/16 inch) thickness.

  • 20 ft. Boat, 70-inch bottom width, .125" (1/8") bottom thickness
  • 27-inch sides, .125" (1/8") thickness
  • Transom thickness of .160" (4/25")
  • Intake thickness of.250" (1/4")
  • Aluminum Floors are .125" (1/8") thickness
  • Bow decks are .160"(4/25") thickness
  • Center Hull Stiffener "C" Channel full-length 6063-T6 Alloy 3/16" (.190") thickness
  • "Box runners" are .125" (1/8") thickness
  • 6 full-length standard hull stiffeners ( 2" channels), 6063-T6 Alloy. .125" (1/8")

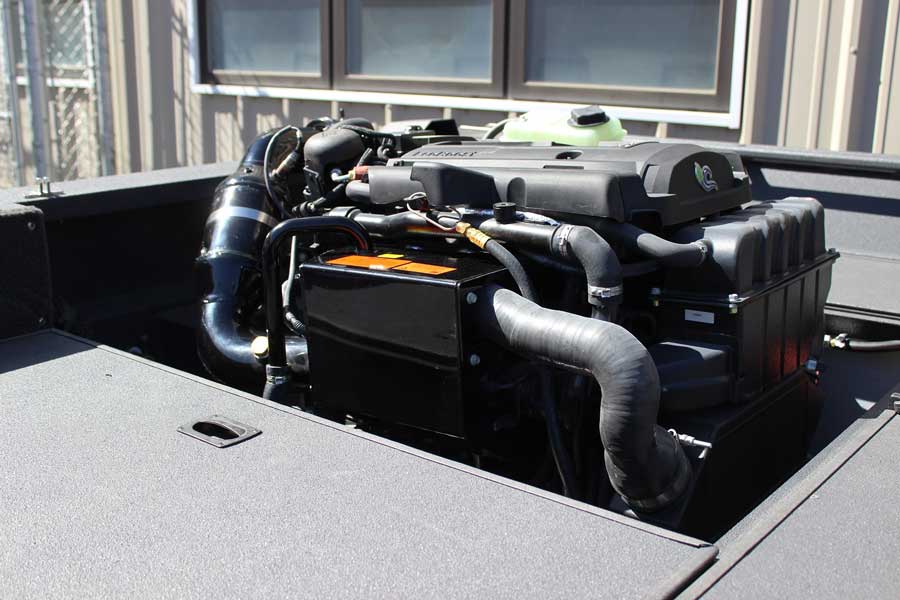

ENGINE & JET DRIVE

  • Engine; Indmar 310 hp Eco-Boost™ 2.3 Liter, Fuel Injected, Turbo Charged.
  • Marine XHD Deep Cycle Interstate™ battery.
  • 40 gallon Aluminum fuel tank**
  • Jet Drive; EcoJet with stainless steel impeller.
  • Indmar engines are equipped with an onboard fuel water separator.
  • Stainless steel 9 bar EZ-Clean Jet intake Cleanout System.
  • Top cleanout port accessible through swim deck.

* Indmar engines are equipped with an additional on-board fuel water separator "dual protection").

**2013 EPA approved closed fuel system, dual anti-siphon ventilation, and splash tray fill.


INSTRUMENTATION, CONTROLS, & HARDWARE

  • Custom Tru-X Instrument Panel with Tach, Hour Meter, and Fuel Gauge
  • VeeThree EGM digital multi-function instrument package
  • All applicable deck hardware.
  • Complete 500 GPH Bilge system
  • 4 inch Blower and welded aluminum cowl vent system**
  • Single lever control shift/throttle combo with neutral safety switch.
  • Lanyard tether kill switch.

**4 inch Blower and stainless cowl vent system to accommodate NEW USCG ventilation regulations and standards.

 If you would like a more detailed breakdown of our boat specifications, please contact us, We would be happy to provided you with any information you may need.


EXCLUSIVE EXTRUSIONS
(designed by SJX for SJX)

  • Outer 1 1/2 inch Handrail/gunwale, 6063-T6 Alloy Temper.
  • Inner 1" Handrail, 6063-T6 Alloy Temper.
  • Center Hull Stiffener "C" Channel.
  • Outer Receiver Hitch Socket 2"square tubing, .250" (1/4") thickness, 6063-T6 Alloy Temper.
  • Inner Receiver Hitch Socket Insert square tubing, 500" (1/2") wall thickness, 6063-T6 Alloy Temper.
  • Heater line tubing, 3/4" OD, .125" (1/8") wall thickness, 6063-T6 Alloy Temper. Deck Hatch Framing Channel, .125" (1/8") thickness, 6063-T6 Alloy Temper.

CONSOLE ASSEMBLY

Center Console Assembly with Windshield and walk around design .125" (1/8") thickness, 5052-H32 Alloy Temper, solid bulkhead type construction yet still removable "Zero Flex".

REAR & FRONT DECK

  • Raised rear deck over fuel tank, storage compartments on sides of engine compartment.
  • Step-up front deck.
  • Bow storage underneath front deck.

ADDITIONAL ITEMS

  • Welded transom eyes, 3.75" 3/8" thickness, 6063-T6 Alloy Temper.
  • Welded bow eye, 3.75" 3/8" thickness, 6063-T6 Alloy Temper.
